Vehicle Fitment
for Honda Acura B18C1 B18C5 GSR Integra R 94-01
for Honda Quint Integra Acura Integra Generation 3: Series DB8, DC2
for Acura Integra (GSR/TypeR) 94-01 B18c1/B18c5
for Honda B18c1/B18c5 (Dohc Engine) 1997-1998,1999 CDM, 2000-2001 Acura Integra USDM/CDM Type R
Specification
*Type: Forged 4340 aircraft chrome moly quality steel for racing

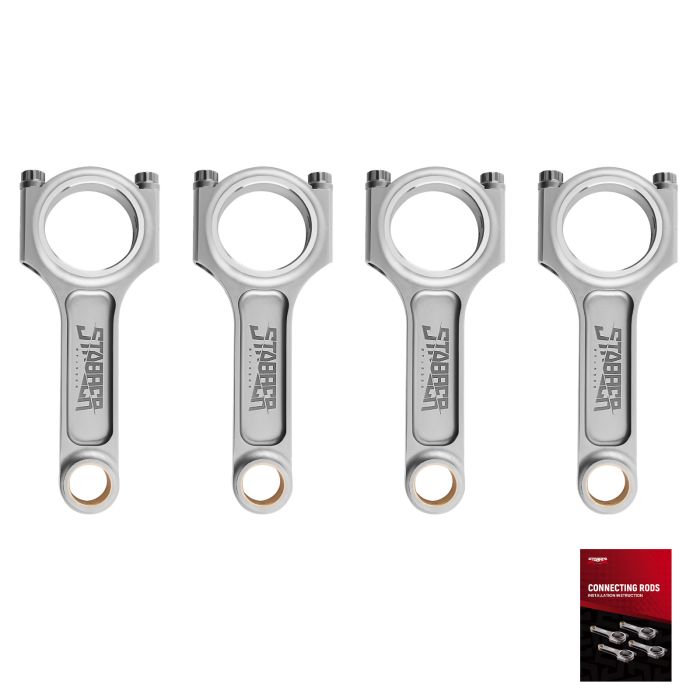

*I-beam Conrods Quantity: 4 Pieces as showing in picture
*Bolts: Including ARP 2000 3/8" bolts (Note: Extra cost for upgrading to ARP L19 bolts)
*The connecting rods all include ARP 2000 bolts, which are rated at 220,000 psi, and the optional ARP L19 material at 260,000 psi is available as an upgraded product.
*Advertised Horsepower Rating:200HP/piece
*Top acceleration: 9000rpm
*package size：28CM*21CM*10CM
Dimension
Brand: STABBER
Weight: 5.73(lbs)
Dimensions: 11.02x7.87x4.33(inch)
Description
• Premium Material
Constructed from forged SAE 4340 Chrome Moly Steel, ensuring the highest strength and durability, specifically designed for high performance racing applications.
• ARP 2000 Bolts with optional upgrade to ARP L19 bolts available.
• I-Beam Design
Engineered to reduce inertial forces, enabling the rods to withstand high gas pressures effectively.
• Enhanced Durability
Heat-treated and shot-peened to maintain consistency and strength and eliminate potential stress risers.
• High precision CNC machining
Exact rod cap alignment dowels for optimal performance and reliability.
• Accurate Bores finished to +/- .005mm；
Bores finished to a tolerance of +/- 0.005mm, ensuring perfect fit and function.
• Balanced Weight to within +/- 1 g per rod；
Meticulously balanced to within +/- 1 gram, guaranteeing uniform weight distribution and exceptional performance.
• Horsepower Rating 600~800HP
Designed to handle power outputs ranging from 600 to 800 horsepower to support high-performance applications with ease.
• RPM Rating 7000-9000 rpm
Capable of withstanding engine speeds 7000-9000 rpm to endure the demands of high-revving engines, ensuring reliable performance
• Exceptional Fastener Strength 200,000 - 230,000 psi
Exhibit a tensile strength ranging from200,000 - 230,000 psi , providing superior durability and stability under extreme loads and pressures.
• In compliance with ISO 9001 Certified Manufacturing Standards
Warranty Policy
1 Year Limited Warranty
