Vehicle Fitment
for BMW N20B20 2.0T / N26B20(US only)
Details fitment:
N20B20
115 kW version
2013-2016 E89 Z4 sDrive18i
2013-present F25 X3 sDrive18i
135 kW version
2011–2015 E84 X1 xDrive/sDrive20i
2011–present F25 X3 xDrive20i
2012–2015 F30 320i
2013–2016 F34 320i GT
2011–2016 F10 520i
2013-2016 F10 520Li
2011–2016 E89 Z4 sDrive20i
2014–present F22 220i
2015-2017 Brilliance Huasong 7 MPV
160 kW version
2012–2017 F20 125i
2013–2016 F10 525Li
2015-2017 Brilliance Huasong 7 MPV
170 kW version
2014–2017 F22 225i
180 kW version
2011–2016 E89 Z4 sDrive28i
2011–2015 E84 X1 xDrive/sDrive28i
2012–present F25 X3 xDrive28i
2011–2016 F30 328i
2011–2016 F10 528i
2013–2016 F34 328i GT
2014–2016 F22 228i
2014–2017 F26 X4 xDrive20i
N26B20
2012-2016 F30 328i / 328iX (USA only)
2012-2016 F22 228i / 228iX (USA only)
--
Pin Type: Floating Pin Piston
Specification
*Type: Forged 4340 aircraft chrome moly quality steel for racing

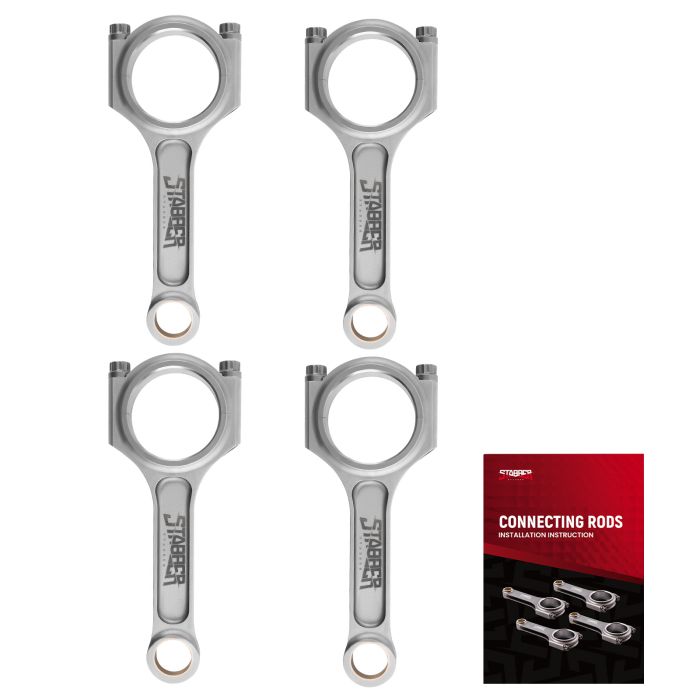

*H-beam Conrods Quantity: 4 Pieces as showing in picture
*Bolts: Including ARP 2000 3/8" bolts (Note: Extra cost for upgrading to ARP L19 bolts)
*The connecting rods all include ARP 2000 bolts, which are rated at 220,000 psi, and the optional ARP L19 material at 260,000 psi is available as an upgraded product.
*Advertised Horsepower Rating:200HP/piece
*Top acceleration: 9000rpm
*package size：28CM*20CM*10CM
Dimension
Brand: STABBER
Weight: 5.78(lbs)
Dimensions: 11.02x7.87x3.94(inch)
Description
• Premium Material
Constructed from forged SAE 4340 Chrome Moly Steel, ensuring the highest strength and durability, specifically designed for high performance racing applications.
• ARP 2000 Bolts with optional upgrade to ARP L19 bolts available.
• I-Beam Design
Engineered to reduce inertial forces, enabling the rods to withstand high gas pressures effectively.
• Enhanced Durability
Heat-treated and shot-peened to maintain consistency and strength and eliminate potential stress risers.
• High precision CNC machining
Exact rod cap alignment dowels for optimal performance and reliability.
• Accurate Bores finished to +/- .005mm；
Bores finished to a tolerance of +/- 0.005mm, ensuring perfect fit and function.
• Balanced Weight to within +/- 1 g per rod；
Meticulously balanced to within +/- 1 gram, guaranteeing uniform weight distribution and exceptional performance.
• Horsepower Rating 600~800HP
Designed to handle power outputs ranging from 600 to 800 horsepower to support high-performance applications with ease.
• RPM Rating 7000-9000 rpm
Capable of withstanding engine speeds 7000-9000 rpm to endure the demands of high-revving engines, ensuring reliable performance
• Exceptional Fastener Strength 200,000 - 230,000 psi
Exhibit a tensile strength ranging from200,000 - 230,000 psi , providing superior durability and stability under extreme loads and pressures.
• In compliance with ISO 9001 Certified Manufacturing Standards
Warranty Policy
1 Year Limited Warranty
