Vehicle Fitment
For CitroenC 3 1.6 Hdi1.6LDV6B DV6ATED42005 -
For CitroenC 4 1.6 Hdi1.6LDV6ATED42005 -
For CitroenJumpy 1.6 HDi 1.6LDV6B DV6ATED42005 -
For CitroenXsara 1.6 HDi 1.6LDV6B DV6ATED4 2005 -
For FordFiesta VI 1.6 TDCi1.6LDV6ATED42005 -
For FordFocus II 1.6 TDCi1.6LHHDA2005 -
For FordFusion 1.6 TDCi1.6LDV6ATED42005 -
For Peugeot 207 1.6 Hdi1.6LDV6ATED42005 -
For Peugeot 307 1.6 Hdi1.6LDV6ATED42002 -
For Peugeot 308 1.6 HDi FAP1.6LDV6ATED42007 -
For Peugeot Expert 1.6 HDi FAP1.6LDV6B DV6ATED42007 -
For Peugeot Partner 1.6 Hdi1.6LDV6B DV6ATED42005 -
For Volvo S40/V50 90HP 66kW 1.6D DV6ATED4 2005-
For Fiat Scudo 90HP 66 1.6HDI DV6ATED4
*please make sure your engine is not 110hp or 109ps, this item does not fit 110hp or 109ps engine
OE/Part Number
49173-07502,49173-07503,49173-07504, 49173-07506,49173-07507,49173-07508, 49173-07513,49173-07514, 49173-07516,49173-07517,49173-07518, 49173-07522,49173-07523,49173-07524, 49173-07526,49173-07527,49173-07528, 54359707000,5435,970,7000,5435-970-7000, 54359887000,5435,988,7000,5435-988-7000, 0375Q2,0375Q3,0375Q4,0375Q5, 0375N5,0375J0,0375K5,0375N0,0375N5, 1684949,1335262,1441254,1479841,1523337, 49173-56201, 71793889,71793891,71794229, 9682881380,9657530580,9662371080, 9685293080,9657603780,9670371380, 9682881780, 3M5Q6K682DA,3M5Q6K682DB,3M5Q6K682DC,3M5Q6K682DD,3M5Q6K682DE, 3M5Q-6K682-DA,3M5Q-6K682-DB,3M5Q-6K682-DC, 3M5Q-6K682-DD,3M5Q-6K682-DE,
Specification
Turbo Model：TD025
Engine Code：DV6ATED4/ DV6B / 9HU (DV6UTED4)
Actuation: Vacuum
Cooling Type: Oil Cooling
Bearing Type: Journal Bearing / Floating Bearing
Thrust bearings: 270 Degrees
Hosepower: Up to 90HP
Turbo Type:Individual
Universal Fitment:No
Finish:Matte
Condition: 100% Brand New
Accessories: You will receive the parts exactly as shown in the picture above.
Package Size：26x24x23cm
Package Weight：3600g

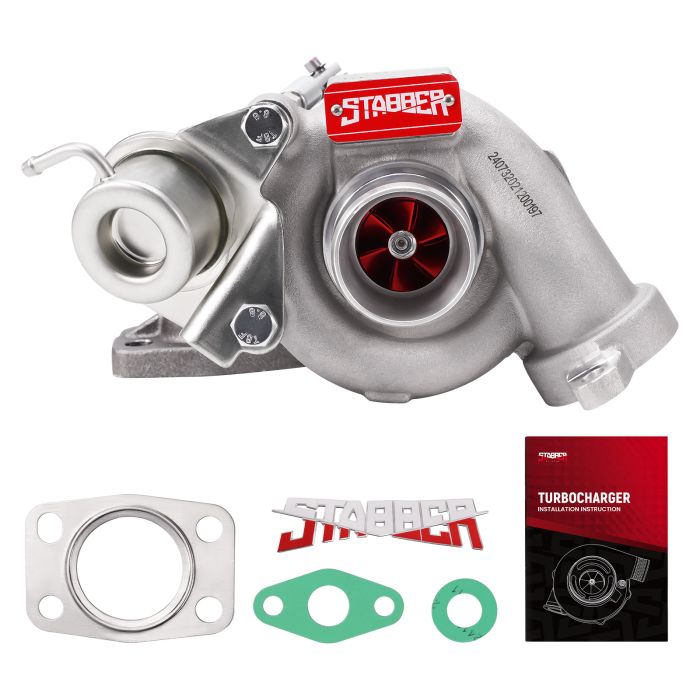

Package included
1x Turbocharger
2x Oil Gaskets
1x Flange Gasket
1x Manual
1x Sticker
Description
1. Silicon-Molybdenum Turbine Housing
Engineered for high-temperature resistance up to 850℃ for enhanced both durability and reliability.
2. K419 Alloy Turbine Wheel
Capable of withstanding high-temperatures up to 1000℃ for smooth and reliable operation.
3. Flank Milled Billet Compressor Wheels
Precision CNC machined from forged billet aluminum, providing high efficiency, fast response, lower fuel consumption, and smooth operation.
4. High-Speed Steel Oil Seal Ring
Offers superior abrasion and heat resistance, protecting bearings and preventing oil leakage and smoking, ensuring optimal performance and longevity.
Warranty Policy
1 Year Limited Warranty
