Vehicle Fitment
This turbo is a universal application turbo, some modification may be required based on individual vehicle.
Perfect for all 4.0L-6.0L engine
Specification
Exhaust Inlet (Turbo Manifold) Flange: T4 Flange
Exhaust Outlet (Downpipe) Flange: 3.25 " Inlet Flange 4.25" Clamp V-Band
Compressor Trim: 49.6
Compressor Inducer Diameter: 69 mm
Compressor Exducer Diameter: 98 mm
Compressor Air Inlet Size: 107mm
Compressor Air outlet Size: 86.3mm
Compressor A/R: 0.66
Turbine Trim: 77.6
Turbine Inducer Diameter: 88 mm
Turbine Exducer Diameter: 77.5 mm
Turbine A/R: 1.05
Oil Inlet: M9 & 2*M8*1.25
Oil Outlet: M19 & 2*M8*1.25
Bearing Type: Floating Bearing
Cooling Type: Oil Cooled
Wastegate：Without Wastegate
Hosepower: Up to 600+HP
Condition: Brand New
Package Size: 29.8*25.9*32.2 CM
Package Weight: 16850g

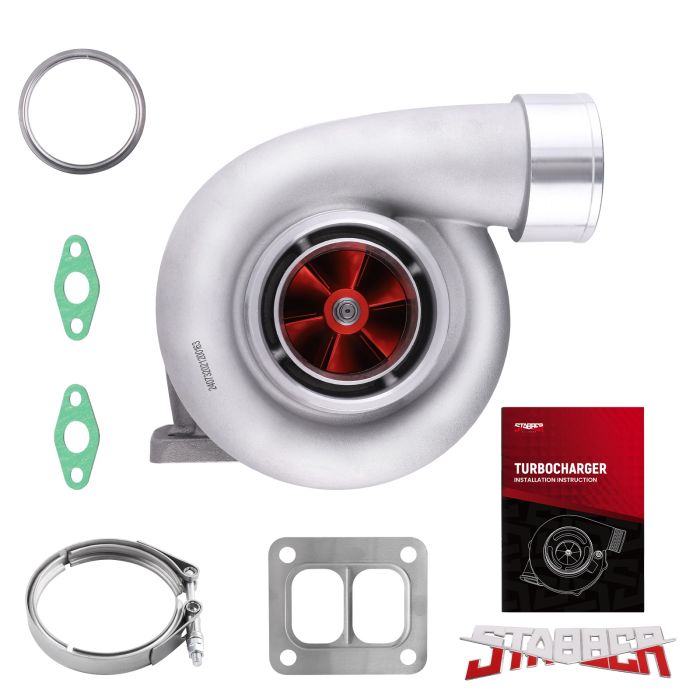

Package included
1x Turbocharger
2x Oil Gaskets
2x Flange Gaskets
1x Manual
1x Sticker
Description
1. Silicon-Molybdenum Turbine Housing
Engineered for high-temperature resistance up to 850℃ for enhanced both durability and reliability.
2. K419 Alloy Turbine Wheel
Capable of withstanding high-temperatures up to 1000℃ for smooth and reliable operation.
3. Flank Milled Billet Compressor Wheels
Precision CNC machined from forged billet aluminum, providing high efficiency, fast response, lower fuel consumption, and smooth operation.
4. High-Speed Steel Oil Seal Ring
Offers superior abrasion and heat resistance, protecting bearings and preventing oil leakage and smoking, ensuring optimal performance and longevity.
Warranty Policy
1 Year Limited Warranty
