Vehicle Fitment
for Honda S2000 F20C
Specification

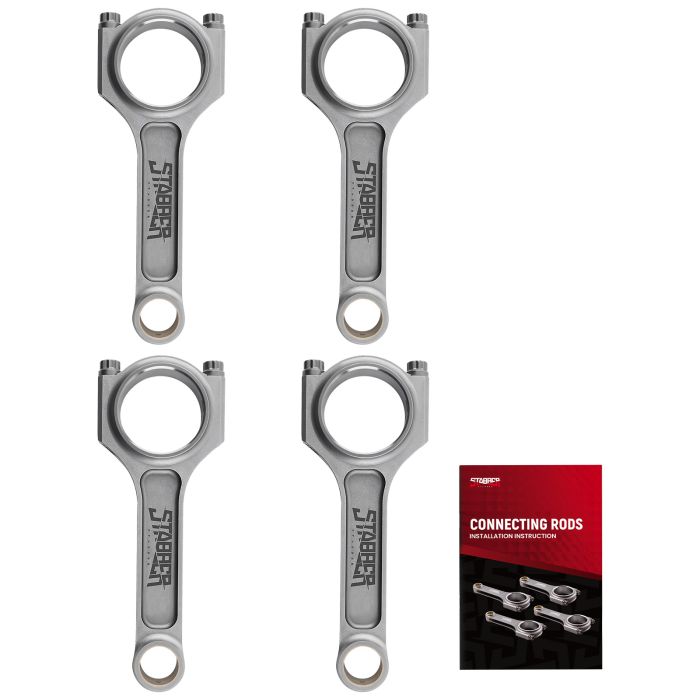

TÜV Certification Con Rods
Type: Forged 4340 aircraft chrome moly quality steel for racing
H-beam Conrods Quantity: 4 Pieces a set
Bolts: Including Genuine ARP 2000 bolts
Note: Extra cost for upgrading to ARP L19 bolts
Bolts Size: 3/8"
Tolerance: Balanced to +/- 1 gram in set
Piston Bolt Hole: +-4/1000mm
Power: 600~800HP
Strength of the fastening (PSI): 200,000 - 230,000 psi Torque: 48ft ≈ 65 NM
Top acceleration: 7000-9000rpm
warranty: 2 years warranty for any manufacture defect
Dimension
Brand: STABBER
Weight: 6.11(lbs)
Dimensions: 8.66x5.51x4.33(inch)
Description
• Premium Material
Constructed from forged SAE 4340 Chrome Moly Steel, ensuring the highest strength and durability, specifically designed for high performance racing applications.
• ARP 2000 Bolts with optional upgrade to ARP L19 bolts available.
• I-Beam Design
Engineered to reduce inertial forces, enabling the rods to withstand high gas pressures effectively.
• Enhanced Durability
Heat-treated and shot-peened to maintain consistency and strength and eliminate potential stress risers.
• High precision CNC machining
Exact rod cap alignment dowels for optimal performance and reliability.
• Accurate Bores finished to +/- .005mm；
Bores finished to a tolerance of +/- 0.005mm, ensuring perfect fit and function.
• Balanced Weight to within +/- 1 g per rod；
Meticulously balanced to within +/- 1 gram, guaranteeing uniform weight distribution and exceptional performance.
• Horsepower Rating 600~800HP
Designed to handle power outputs ranging from 600 to 800 horsepower to support high-performance applications with ease.
• RPM Rating 7000-9000 rpm
Capable of withstanding engine speeds 7000-9000 rpm to endure the demands of high-revving engines, ensuring reliable performance
• Exceptional Fastener Strength 200,000 - 230,000 psi
Exhibit a tensile strength ranging from200,000 - 230,000 psi , providing superior durability and stability under extreme loads and pressures.
• In compliance with ISO 9001 Certified Manufacturing Standards
Warranty Policy
1 Year Limited Warranty
