Vehicle Fitment
Directly bolt on for Nissan Skyline R32 R33 R34 2.0L-2.5L RB20DET RB25DET engine
*For some R33 models few modifications may be required(A direct Bolt on turbo upgrade for RB20DET and RB25DET for Skyline Engines!
Will require a coupler to connect turbo to hotpipe but other than that its a OEM Bolt on with upgrade 3" air inlet and larger wheels for optimum power. )
Specification
Exhaust Inlet Flange: T3 Flange
Exhaust Outlet Flange: 6-Bolt Flange
Turbine Side:
Turbine Inducer Diameter: 64.4mm
Turbine Exducer Diameter: 47.9mm
Turbine Trim: 55.3
Turbine A/R: 0.63
Compressor Side:
Compressor Inducer Diameter: 52.7 mm
Compressor Exducer Diameter: 76mm
Compressor Trim: 48.1
Compressor A/R: 0.50
Wastegate：With Wastegate
Bearing: Floating Bearing
Thrust Bearing:270 degree
Cooling Type: Water cooling
Turbo Type: Individual
Oil Inlet: M12*1.25
Side hole: M8*1.25
Oil Return: 18
Side hole:M8*1.25
Center-center: 50.8
Water Hole: M18*1.5
Horse Power: Boost Horse Power up to 500BHP
Condition:100% Brand New
Accessories: You will get exactly as picture shown
Package Size:29.9*25.8*32.5 cm
Package Weight: 8600g

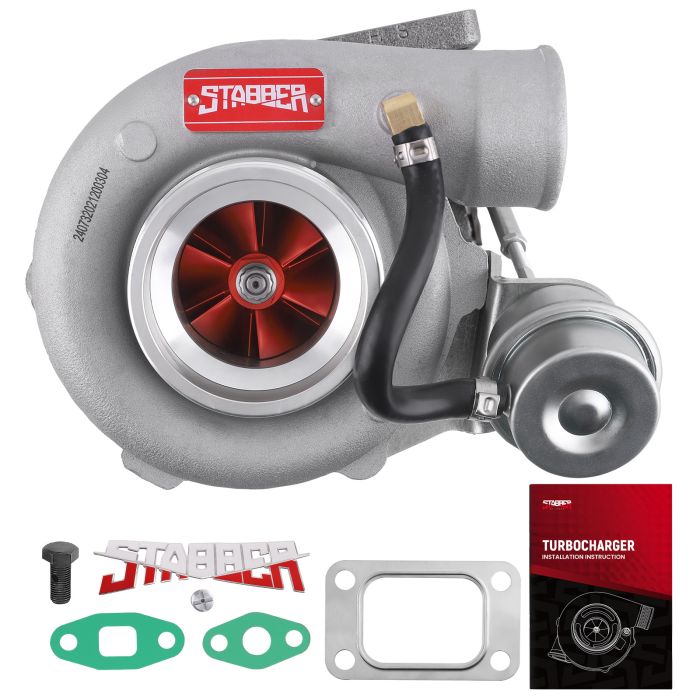

Package included
1x Turbocharger
2x Oil Gaskets
1x Flange Gasket
1x Restrictor
1x Oil Inlet Bolt
1x Manual
1x Sticker
Description
1. Silicon-Molybdenum Turbine Housing
Engineered for high-temperature resistance up to 850℃ for enhanced both durability and reliability.
2. K419 Alloy Turbine Wheel
Capable of withstanding high-temperatures up to 1000℃ for smooth and reliable operation.
3. Flank Milled Billet Compressor Wheels
Precision CNC machined from forged billet aluminum, providing high efficiency, fast response, lower fuel consumption, and smooth operation.
4. High-Speed Steel Oil Seal Ring
Offers superior abrasion and heat resistance, protecting bearings and preventing oil leakage and smoking, ensuring optimal performance and longevity.
Warranty Policy
1 Year Limited Warranty
