Vehicle Fitment
For John Deere Agricultural Tractor with 6081H 2001-06
For John Deere Various
OE/Part number
177272, 177275, 177281,176635,176647
Specification
Turbine Inducer: 80mm/3.14in
Turbine Exducer: 73mm/2.9in
Turbine Trim: 85
Turbine A/R: 0.91
Turbine Wheel: 10 blades
Turbine Inlet Flange Type: T4
Turbine Outlet Flange Type: for Marmon flange
Compressor Inducer Diameter: 66mm/2.6in
Compressor Exducer: 96mm/3.8in
Compressor Trim: 47
Compressor Wheel: 7+7 blades
Horse Power: Up to 320-800hp
Scroll Type: Twin Scroll
Bearings Type: Floating bearing
Trust Bearings: 270 Degrees
Cooling Type: Oil cooling

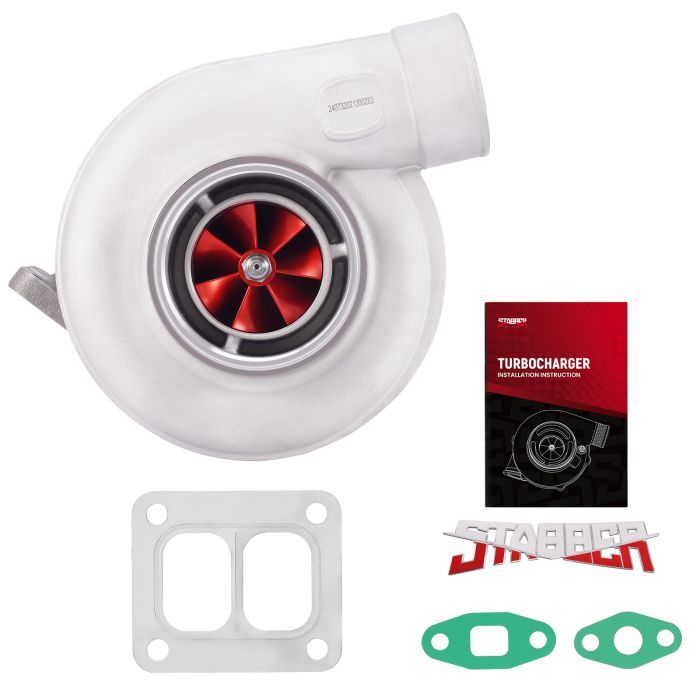

Package included
1x Turbocharger
2x Oil Gaskets
1x Flange Gasket
1x Manual
1x Sticker
Description
1. Silicon-Molybdenum Turbine Housing
Engineered for high-temperature resistance up to 850℃ for enhanced both durability and reliability.
2. K419 Alloy Turbine Wheel
Capable of withstanding high-temperatures up to 1000℃ for smooth and reliable operation.
3. Flank Milled Billet Compressor Wheels
Precision CNC machined from forged billet aluminum, providing high efficiency, fast response, lower fuel consumption, and smooth operation.
4. High-Speed Steel Oil Seal Ring
Offers superior abrasion and heat resistance, protecting bearings and preventing oil leakage and smoking, ensuring optimal performance and longevity.
Warranty Policy
1 Year Limited Warranty
