Vehicle Fitment
For Scion TC 2011-2016 AGT20 North America & Canada Market
For Toyota Zelas 2011-2016 (Central America, China, Middle East, Africa, South America Market)
Specification
Damping Adjustable: Available, 24 Levels Of Rebound Damping Force
Height Adjustable: Yes, Lowering 1-3 Inches Depending On The Vehicle Models
Front top mount structure: Pillow ball with camber plate
Rear top mount structure: OE top mount required
Spring Rate Front: 8 kg/mm(448lbs/in)
Spring Rate Rear: 7 kg/mm(392lbs/in)
Spring length Front: 180 mm
Spring length Rear: 183 mm
Front spring inner diameter: 70.5 mm
Rear spring inner diameter: 63 mm
Shock Structure Type: Twin -Tube
Spring Preload Advised: 7-10 mm
Color: Black Body With Red Spring
Package included
Package included：

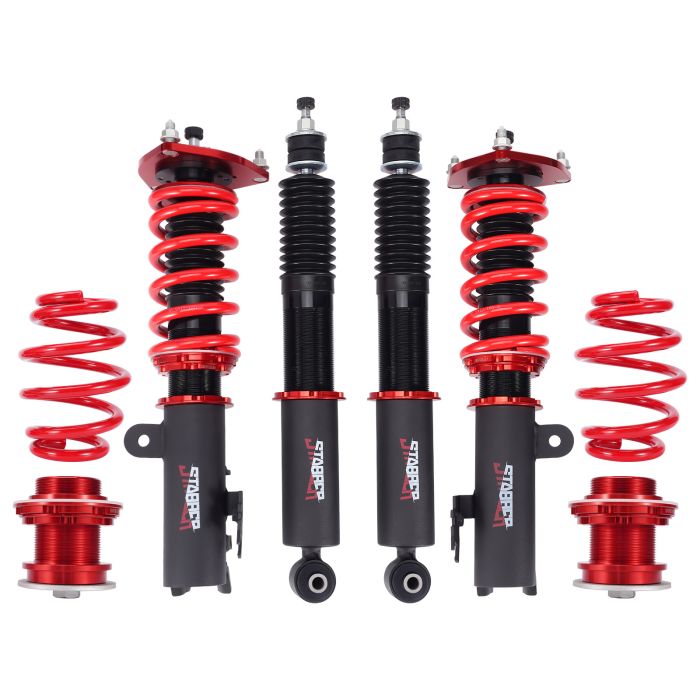

2x Front coil-overs
2x Rear coil-overs
1x Allen wrench
2x C spanners
1x Sticker
Dimension
Brand: STABBER
Weight: 65.26(lbs)
Dimensions: 26.02x21.02x9.06(inch)
Description
• Adjustable Lowered Height
Offer a precise lowering range from 1 to 3 inches, enabling a reduced center of gravity for improved handling and a distinctly aggressive, sporty stance that enhances both aesthetics and performance.
• Independent Height Tuning
Adjust the vehicle’s height without impacting the damper stroke, allowing for easy adjustments even when installed on the vehicle.
• 24-Level Rebound Damping Adjustment
Offer 24 distinct levels of rebound damping adjustment, this suspension setup allows for meticulous fine-tuning to achieve superior ride quality under various road conditions
• Enhanced Steering Response
Front pillow ball top mounts significantly enhances steering feedback and response, providing a sharper, more connected driving experience
• Robust Twin-Tube Design
Ensure ample stroke within the shock absorber, providing consistent performance and durability in diverse driving conditions
*In compliance with ISO 9001 Certified Manufacturing Standards
Warranty Policy
1 Year Limited Warranty
