Vehicle Fitment
Universal Application.
for 1.5L to 2.5L any 4/6 cylinder engine
Specification
Turbine:
Turbine Intake Flange: T3 T4 4 bolt Flange Patterns
Turbine Exhaust Flange: Standard T3 5 bolt flange pattern
Turbine Trim: 74.2
Turbine A/R: 0.63
Turbine Inducer: 64.8mm
Turbine Exducer: 55.8mm
Turbine exhaust inlet：44.5mm/81mm
Compressor:
Compressor Trim: 48.1
Compressor A/R: 0.5
Compressor Inducer: 52.7mm
Compressor Exducer: 76mm
Compressor outlet：45mm(inside diameter)/53mm(outer diameter)
Compressor inlet：68 mm(inside diameter)/72mm(outer diameter)
Oil Inlet: M12*1.25
Oil Outlet:2*M8*1.25
Wastegate：Without Wastegate
Cooling Type: Oil Cooled
Bearing Type: Floating Bearing
Trust Bearing: 270 degree
Hosepower: Up to 400+HP
Turbo Type: Individual
Universal Fitment:Yes
Finish:Matte
Condition: 100% Brand New
Accessories: You will get exactly as shown as picture above
Package Size:27x 25x 23 cm
Package Weight: 7220g

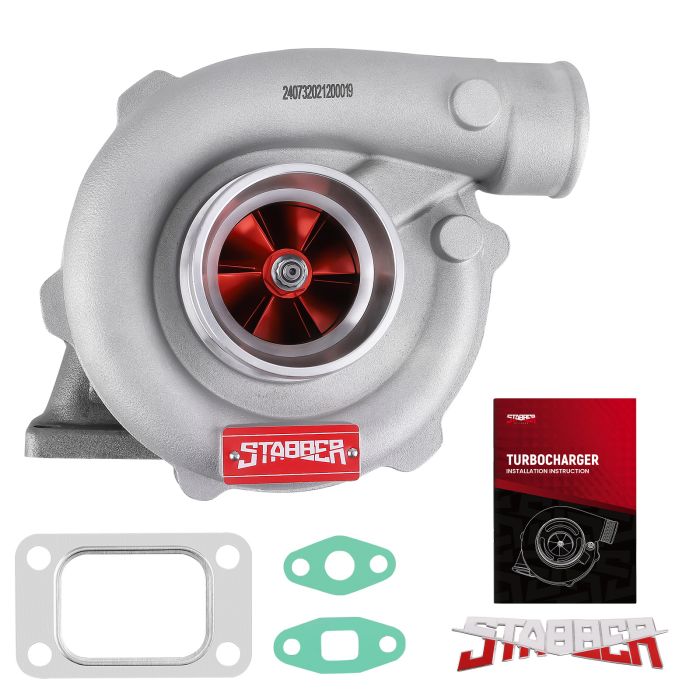

Package included
1x Turbocharger
2x Oil Gaskets
1x Flange Gasket
1x Manual
1x Sticker
Description
1. Silicon-Molybdenum Turbine Housing
Engineered for high-temperature resistance up to 850℃ for enhanced both durability and reliability.
2. K419 Alloy Turbine Wheel
Capable of withstanding high-temperatures up to 1000℃ for smooth and reliable operation.
3. Flank Milled Billet Compressor Wheels
Precision CNC machined from forged billet aluminum, providing high efficiency, fast response, lower fuel consumption, and smooth operation.
4. High-Speed Steel Oil Seal Ring
Offers superior abrasion and heat resistance, protecting bearings and preventing oil leakage and smoking, ensuring optimal performance and longevity.
Warranty Policy
1 Year Limited Warranty
