Vehicle Fitment
Universal for Turbo Manifold with T3 Flange. Perfect for all 2.0L-3.0L engines.
*Notice:DO NOT for 3 INCH VBAND.The vband size of this turbo is 2.5 inch.Please confirm the size before purchasing.
Specification
Compressor Size:
* Trim: 57
* Inducer Diameter: 56.6 mm
* Exducer Diameter: 75 mm
* A/R: 0.82
Turbine Size:
* Exhaust Inlet Flange: T3 Twin Scroll Flange
* Exhaust Outlet Flange: 2.5" V Band Flange
*Turbine exhaust outlet : 79.8 mm(OD) / 63 mm（ID）
* Trim: 61.6
* Inducer Diameter: 74.4 mm
* Exducer Diameter: 58.4 mm
* A/R: 0.7
Oil Inlet: M12*1.25 & 2*M8*1.25
Oil Outlet: 2*M8*1.25
Cooling Type: Oil Cooled
Horse Power: up to 500HP
Wastegate：Without Wastegate
Bearing Type: Floating Bearing
Thrust bearing: 270 Degrees
Turbo Type:Twin-Scroll
Universal Fitment: Yes
Finish: Polished
Condition: 100% Brand New

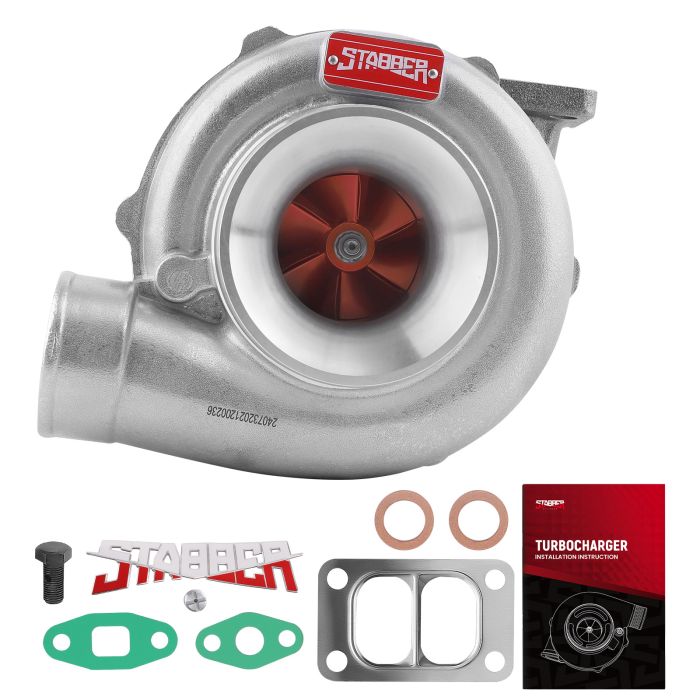

Accessories: You will get exactly as shown in the picture above
Package Size: 29.9*26.4*33.4cm
Package Weight: 10400g
Package included
1x Turbocharger
2x Oil Gaskets
2x Washers
1x Flange Gasket
1x Restrictor
1x Oil Inlet Bolt
1x Manual
1x Sticker
Description
1. Silicon-Molybdenum Turbine Housing
Engineered for high-temperature resistance up to 850℃ for enhanced both durability and reliability.
2. K419 Alloy Turbine Wheel
Capable of withstanding high-temperatures up to 1000℃ for smooth and reliable operation.
3. Flank Milled Billet Compressor Wheels
Precision CNC machined from forged billet aluminum, providing high efficiency, fast response, lower fuel consumption, and smooth operation.
4. High-Speed Steel Oil Seal Ring
Offers superior abrasion and heat resistance, protecting bearings and preventing oil leakage and smoking, ensuring optimal performance and longevity.
Warranty Policy
1 Year Limited Warranty
